(44) CentOS7にZabbix4.0をインストール
完了要件
CentOS7にZabbix4.0をインストールします。 Zabbix4.0の必要条件は下記のようになっています。 MySQL 5.0.3 or later InnoDB engine is required. Apache 1.3.12 or later PHP 5.4.0 or later PHP extensions: gd 2.0 or later bcmath php-bcmath ctype php-ctype libXML 2.6.15 or later php-xml or php5-dom, if provided as a separate package by the distributor. xmlreader php-xmlreader, if provided as a separate package by the distributor. xmlwriter php-xmlwriter, if provided as a separate package by the distributor. session php-session, if provided as a separate package by the distributor. sockets php-net-socket (--enable-sockets). Required for user script support. mbstring php-mbstring (--enable-mbstring) gettext php-gettext (--with-gettext). Required for translations to work. mysqli Required if MySQL is used as Zabbix backend database. そこで、Moodleなどをインストールするときと同様にCentOS7を標準インストールします。 |
SElinuxを無効化設定します。 # cd /etc/selinux # vi config (設定ファイルの編集) SELINUX=enforcing ↓ SELINUX=disabled (無効化設定します) # reboot (マシンをリブートします) OSモジュールをアップデートします。 # yum -y update # reboot |
データベースがインストールされているか一応チェックしてみます # rpm -qa | grep mariadb mariadb-server-5.5.37-1.el7_0.x86_64 mariadb-5.5.37-1.el7_0.x86_64 mariadb-libs-5.5.37-1.el7_0.x86_64 無ければインストールします # yum install mariadb-server mariadb mariadb-libs Apacheがインストールされているかチェックします。無ければ追加インストールします。 # rpm -qa | grep httpd # yum install httpd httpd-devel mod_ssl |
新しいバージョンのPHPをインストールするために、EPELのリポジトリのインストールを行います。 # yum install epel-release # vi /etc/yum.repos.d/epel.repo enabled=1 変更enabled=0 (普段は無効状態に設定しておきます) REMIレポジトリをインストールします # rpm --import http://rpms.famillecollet.com/RPM-GPG-KEY-remi # rpm -ivh http://rpms.famillecollet.com/enterprise/remi-release-7.rpm # vi /etc/yum.repos.d/epel.repo enabled=0 にする # vi /etc/yum.repos.d/remi.repo enabled=0にする # vi /etc/yum.repos.d/remi-safe.repo enabled=0にする Zabbix用にphp7.2をインストールします # yum install --enablerepo=epel,remi,remi-php72 OpenIPMI-libs OpenIPMI-modalias OpenIPMI-perl libzip pcre-devel php php-bcmath php-devel php-fpm php-gd php-intl php-ldap php-mbstring php-mysqlnd php-opcache php-pear php-pecl-apcu php-pecl-zip php-soap php-xml php-xmlrpc unixODBC unixODBC-devel vlgothic-p-fonts gd-last libargon2 libzip5 php-cli php-common php-fedora-autoloader php-json php-pdo php-process fping unixODBC # systemctl restart httpd.service # systemctl enable httpd.service Fiewallの設定をします デフォルトではポート22/TCP(ssh)しか開いていないのでhttp,https,smtpなど必要なポートを追加します Zabbix用にはポート10050/TCPを開きます。 |
httpd(Apache)の設定をします Webサイトデータを載せるディレクトリを /data/html にしました。 # mkdir /data (データを載せるディレクトリを作ります) # mkdir /data/html (ドキュメントルートに設定するディレクトリを作ります) # cd /etc/httpd/conf (httpdの設定ファイルがあるディレクトリに移動します) # ls # cp httpd.conf httpd.conf.org (一応、オリジナルの設定ファイルを名前を付けてコピー保存しておきます) # vi httpd.conf (設定ファイルを修正します) DocumentRoot “/var/www/html” ↓ DocumentRoot “/data/html” <--こちらに修正 <Directory “/var/www/html”> ↓ <Directory “/data/html”> <--こちらに修正 DirectoryIndex index.html ↓ DirectoryIndex index.php index.html <--こちらに修正 mimetypeの設定追加をします # vi /etc/mime.types application/x-httpd-php php application/x-httpd-php-source phps phpの設定をします phpのログを記録するディレクトリを作ります # mkdir /var/log/php # chown apache:apache /var/log/php (apacheから書き込めるようにします) # chmod 755 /var/log/php オリジナルの設定ファイルを残しておきます # cp /etc/php.ini /etc/php.ini.org phpの設定ファイルを修正します # vi /etc/php.ini ;date.timezone = ↓ date.timezone = 'Asia/Tokyo' error_reporting = E_ALL & ~E_DEPRECATED & ~E_STRICT ↓ error_reporting = E_ALL & ~E_NOTICE ;error_log = php_errors.log ↓ error_log = "/var/log/php/php_errors.log" (さきほど作ったディレクトリにログを残すようにします) memory_limit = 128M ↓ memory_limit = 256M post_max_size = 8M ↓ post_max_size = 51M upload_max_filesize = 2M ↓ upload_max_filesize = 51M ;mbstring.language = Japanese ↓ mbstring.language = Japanese ;mbstring.internal_encoding = EUC-JP ↓ mbstring.internal_encoding = UTF-8 ;mbstring.http_input = auto ↓ mbstring.http_input = pass ;mbstring.http_output = SJIS ↓ mbstring.http_output = pass ;mbstring.encoding_translation = Off ↓ mbstring.encoding_translation = Off ;mbstring.detect_order = auto (そのまま) ;mbstring.substitute_character = none ↓ mbstring.substitute_character = none; ;mbstring.func_overload = 0 ↓ mbstring.func_overload = 0 ;mbstring.strict_detection = Off ↓ mbstring.strict_detection = Off max_execution_time = 30 ↓ max_execution_time = 300 max_input_time = 60 ↓ max_input_time = 300 # cd /data/html (httpdのドキュメントルートに移動します) # vi test.php (phpが本当に動くかチェック用のファイルを作ります) 下記の3行を記入します。 <?php phpinfo(); ?> phpの設定変更を反映させるためにhttpdをリスタートします # systemctl restart httpd ブラウザでこのサーバーにアクセスしてPHPテスト画面が出ればOKです。 http://( FQDN )/test.php |
MaiaDBの設定をします # systemctl start mariadb (データベースサーバーをスタートします) # systemctl enable mariadb (パワーONでOSが立ち上がるとmariadbも自動で立ち上がるように設定します) # mysql_secure_installation (mariadbの初期設定をします) Enter current password for root (enter for none): Set root password? [Y/n] Y New password: (適当なパスワード) Re-enter new password:(適当なパスワード) Remove anonymous users? [Y/n]Y Disallow root login remotely? [Y/n] Y Remove test database and access to it? [Y/n] Y Reload privilege tables now? [Y/n] Y Thanks for using MariaDB! # cp /etc/my.cnf /etc/my.cnf.org データベースフォーマットを指定します # vi /etc/my.cnf innodb_file_per_table = 1 innodb_file_format = Barracuda # mysql -u root -p(先ほど設定したパスワード) (rootで入ります) > select host,user,password from mysql.user;(ユーザーとパスワードの状況をチェックします) > create database zabbix character set utf8 collate utf8_bin; > grant all on zabbix.* to zabbix@localhost identified by 'zabbixユーザー用のパスワード'; > show databases; > exit |
Zabbixのインストール # cd /usr/local/src 必要なソフトをインストールします # wget http://springdale.math.ias.edu/data/puias/unsupported/7/x86_64//iksemel-1.4-6.sdl7.x86_64.rpm # rpm -Uvh iksemel-1.4-6.sdl7.x86_64.rpm # wget http://repo.zabbix.com/zabbix/4.0/rhel/7/x86_64/zabbix-release-4.0-1.el7.noarch.rpm # wget http://repo.zabbix.com/zabbix/4.0/rhel/7/x86_64/zabbix-server-mysql-4.0.1-1.el7.x86_64.rpm # wget http://repo.zabbix.com/zabbix/4.0/rhel/7/x86_64/zabbix-web-4.0.1-1.el7.noarch.rpm # wget http://repo.zabbix.com/zabbix/4.0/rhel/7/x86_64/zabbix-web-japanese-4.0.1-1.el7.noarch.rpm # wget http://repo.zabbix.com/zabbix/4.0/rhel/7/x86_64/zabbix-web-mysql-4.0.1-1.el7.noarch.rpm # wget http://repo.zabbix.com/zabbix/4.0/rhel/7/x86_64/zabbix-get-4.0.1-1.el7.x86_64.rpm # wget http://repo.zabbix.com/zabbix/4.0/rhel/7/x86_64/zabbix-agent-4.0.1-1.el7.x86_64.rpm # rpm -ivh --nodeps zabbix-server-mysql-4.0.1-1.el7.x86_64.rpm zabbix-web-4.0.1-1.el7.noarch.rpm zabbix-web-japanese-4.0.1-1.el7.noarch.rpm zabbix-web-mysql-4.0.1-1.el7.noarch.rpm zabbix-agent-4.0.1-1.el7.x86_64.rpm zabbix-release-4.0-1.el7.noarch.rpm zabbix-get-4.0.1-1.el7.x86_64.rpm データベースに初期データを読み込ませます # cd /usr/share/doc/zabbix-server-mysql-4.0.1 # gunzip create.sql.gz # mysql -u root -pさっき設定したパスワード zabbix < create.sql データベースアクセス用のパスワードをZabbixに設定します # vi /etc/zabbix/zabbix_server.conf # DBPassword= ↓ パスワード設定 DBPassword=2018zabbix # vi /etc/httpd/conf.d/zabbix.conf # php_value date.timezone Europe/Riga ↓ タイムゾーンの設定 php_value date.timezone Asia/Tokyo # systemctl restart httpd # systemctl start zabbix-server # systemctl enable zabbix-server # systemctl start zabbix-agent # systemctl enable zabbix-agent # zabbix_get -s 127.0.0.1 -k agent.version 4.0.1 ←バージョンが表示されればOKです |
ブラウザで http://[FQDN]/zabbix を開いて初期設定を行います |

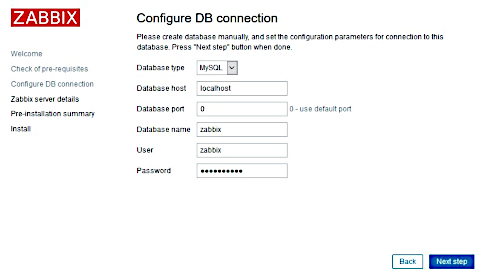

データベースへの接続情報を入力します。 |

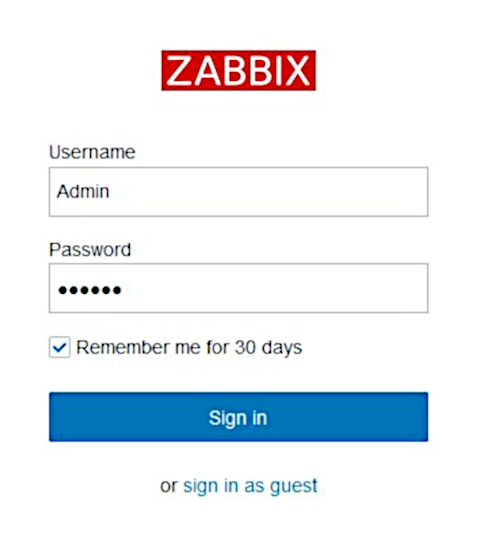

ログイン情報: ユーザー Admin 初期パスワード zabbix |

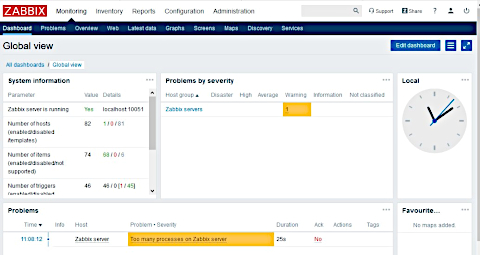

ログインすると下記のようなダッシュボードが表示されます。 |
検出対象のlinuxサーバーにZabbixエージェントをインストール # rpm -ivh http://repo.zabbix.com/zabbix/4.0/rhel/7/x86_64/zabbix-agent-4.0.1-1.el7.x86_64.rpm # rpm -ivh http://repo.zabbix.com/zabbix/4.0/rhel/7/x86_64/zabbix-get-4.0.1-1.el7.x86_64.rpm エージェントの起動 # systemctl start zabbix-agent # systemctl enable zabbix-agent # zabbix_get -s 127.0.0.1 -k agent.version 4.0.1 ←バージョンが表示されればOKです |
